Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

Name: Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic
Brand: HWASHI
Price: 1 USD

Wholesale Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic from china suppliers

Brand Name : HWASHI

Model Number : WL-TSP-100/150K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Single Head XY Axis Wire Mesh Row Welding Machine High Speed Full Automatic

Application : Mesh Product

Size : 6000x1200x1600mm

Condition : New

Warranty : 12months

Certificate : CE/CCC/ISO

Service Life : 8-10 years

Weight : 3000 KG

Motor type : Stepping motor

Contact Now

Single Head XY Axis Wire Mesh Row Welding Machine High Speed Full Automatic

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

Description Of The Single Head XY Axis Wire Mesh Row Welding Machine

The single head XY axis wire mesh Rrow welding machine adopts a single-head long arm type welding structure, equipped with work piece molds that move along the X and Y axis automatically. Input coordinated at a of welding position, welding current and other data to realize automatic welding. Just need to load the material manually and take out the work piece. lt is suitable for the welding of the mesh with in the range of 1000mm X 1000mm.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

Special product molds welding platform

Processing and production according to the size of each mesh product.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

X.Y axis moving device

Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required.

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic

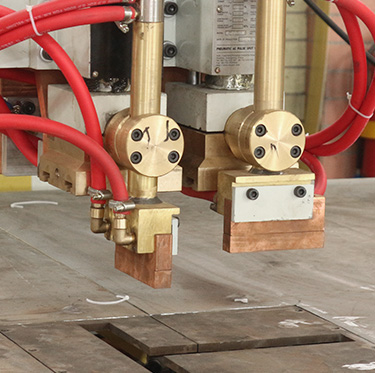

Single head long arm type welding

The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head.

Specification Of The Single Head XY Axis Wire Mesh Row Welding Machine

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	1-5mm
Warranty	1 years
Mesh Welding Range	1000mm X 1000mm

The XY axis mold frame is driven by servo motor with synchronous belt drive, and the walking step length and speed are controlled by the control system. When the manual material is fixed on the mold frame, the switch is activated and controlled by the industrial control computer, the product will walk alternately with the X and Y axes of the mold frame to automatically complete the welding of each part of the joints, and will automatically return to the origin when the welding is completed, without the need for manual operation by other personnel. At the same time, the operator can set up the material to prepare for the next welding work, which not only reduces the labor cost, but also effectively uses the welding time to set up the material.

Application And Samples Of The Single Head XY Axis Wire Mesh Row Welding Machine

Single Head XY Axis Row Wire Mesh Welding Machine High Speed Full Automatic
